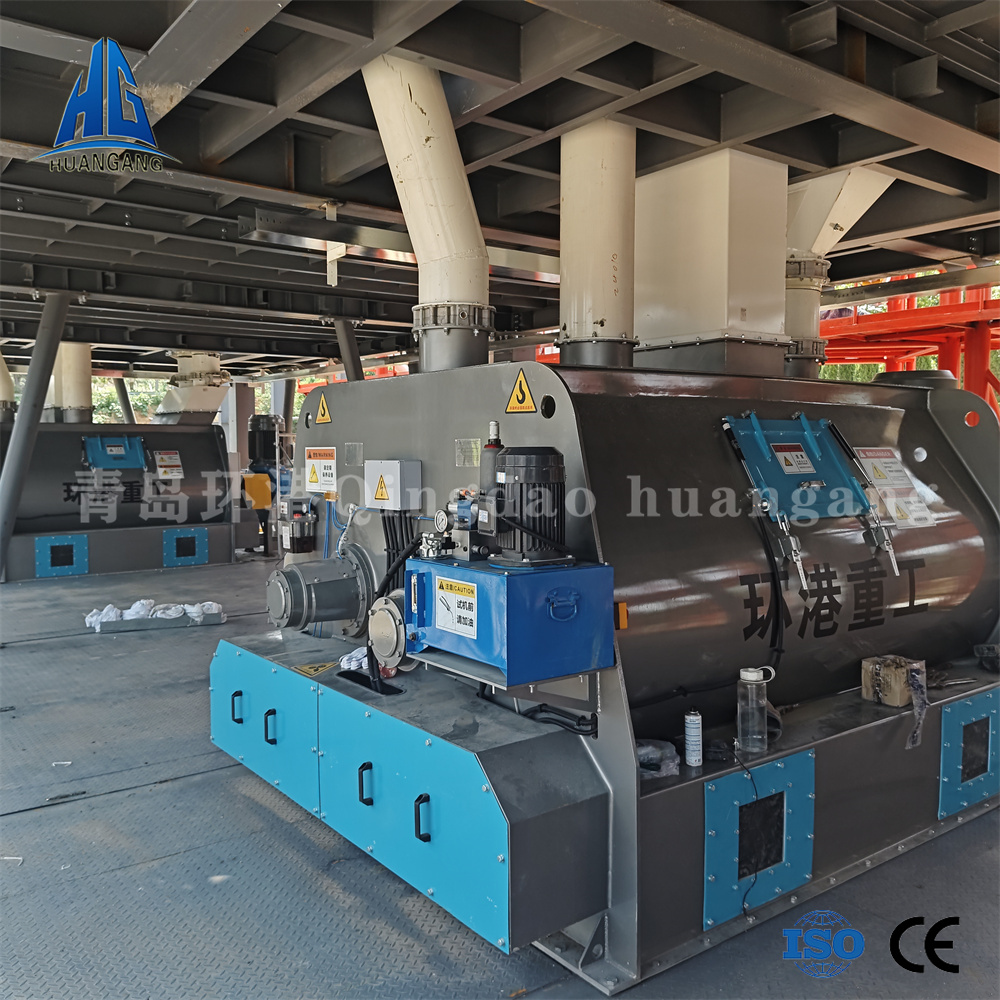

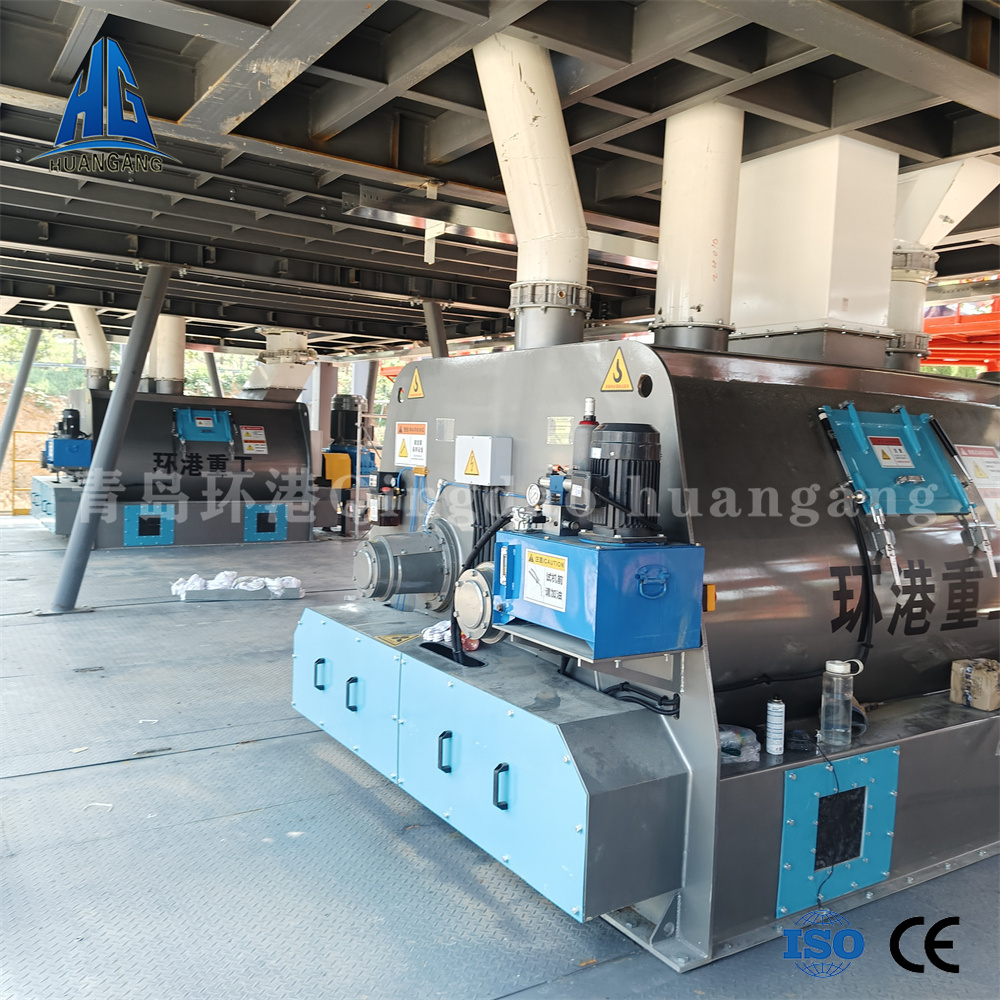

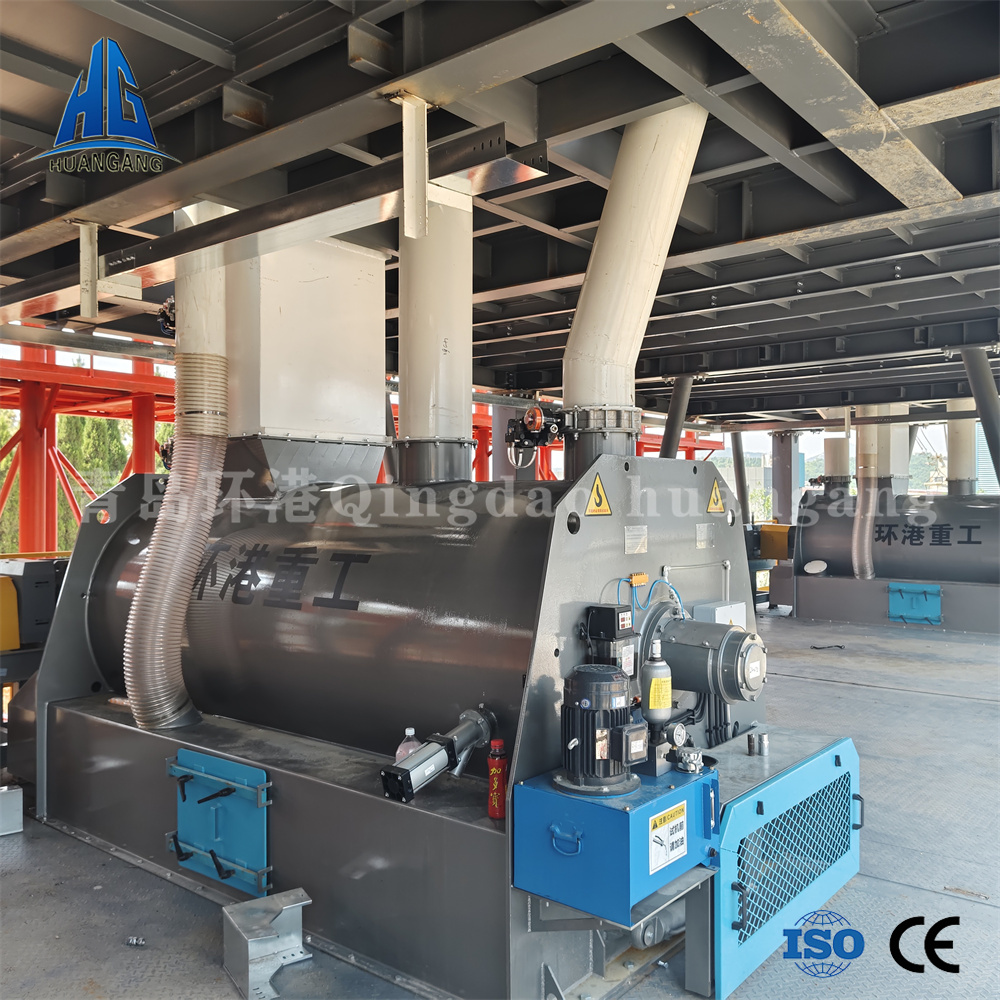

When the equipment is operating, its internal materials are in a state of weightlessness, and the materials inside can be staggered and diffused to achieve a more effective and sufficient mixing of the materials.

The maximum volume of the dual-axis non-gravity mixer can reach 4000-8000L, the dual-axis speed is 55 revolutions per minute. Compared with the single-axis mixer, the mixing volume is relatively large, suitable for the production of bulk materials with larger output, and the raw materials such as sand, cement, gypsum, fly ash, heavy calcium, ash calcium and admixtures can be fully turned evenly in about 180 seconds. The formation of the finished material to reach the specified strength, but also the use of a unique hydraulic door structure, can make the material in 10 seconds to complete the discharge, discharge residual less, and our mixer discharge port is equipped with a distributor, according to the need to control the finished material is sent to the packaging machine for bagging or through the dry powder feed screw to the bulk head for bulk.

Dual-axis non-gravity mixer is widely used in the production of crack resistant mortar, thermal insulation mortar, bonding mortar, coating mortar, floor mortar and other dry mortar and middle and high grade putty powder.

The dual-shaft driving device adopts frequency conversion speed regulation technology, which can adjust the rotation speed according to different mixing requirements to achieve the best mixing effect.
The industrial gearbox is used instead of the traditional chain drive.
The combination of mechanical seal and pneumatic seal is adopted to eliminate the phenomenon of leakage and reduce the waste of materials.
Replaceable wear-resistant blades and packing box wear-resistant sleeves ensure the production of 300,000 tons of mortar without changing the blades.
The mixing device uses a plow knife or blade blade to make the mixing effect better and more fully.
The unloading method of the big door can shorten the unloading time and improve the efficiency, and can ensure that there is no residue and the unloading speed is fast, saving time.

The cutting and sprinkling action of the high-speed flying knife makes the mixing time shorter and the mixing accuracy higher.

参数：

型 号Model		SZ1500	SZ2000	SZ3000	SZ4000	SZ6000	SZ8000
全容积 Total Volume	L	1500	2000	3000	4000	6000	8000
容积系数 Volumetric Coefficient		0.4~0.7	0.4~0.7	0.4~0.7	0.4~0.7	0.4~0.65	0.4~0.65
搅拌功率 Mixing Power	KW	18.5	22	30	45	55	75
卸料功率 Discharge Power	KW	3	3	3	3	4	4
重量 Weight	KG	2900	3700	4800	6300	7600	8900

注：由于我们不断对产品进行性能完善和改进，产品参数以实物以准。

High mixing uniformity: ensure that the material is mixed evenly and improve product quality.
Low energy consumption: Efficient hybrid design reduces energy consumption and saves costs.
Easy operation: high degree of automation, simple operation, reduce manual intervention.
Strong durability: The use of high-quality materials, long equipment life, reduce maintenance costs.
Customized service: can be customized according to customer needs to meet the special process requirements.

Installation and commissioning: Provide professional installation and commissioning services to ensure the normal operation of the equipment.
Technical training: Provide operation and maintenance training to customers to ensure proper use of equipment.
Periodic maintenance: Provides periodic maintenance services to ensure long-term stable running of the device.
