Category : Ready-mixed mortar production line
Release Date : 2025-05-07
View : 236times

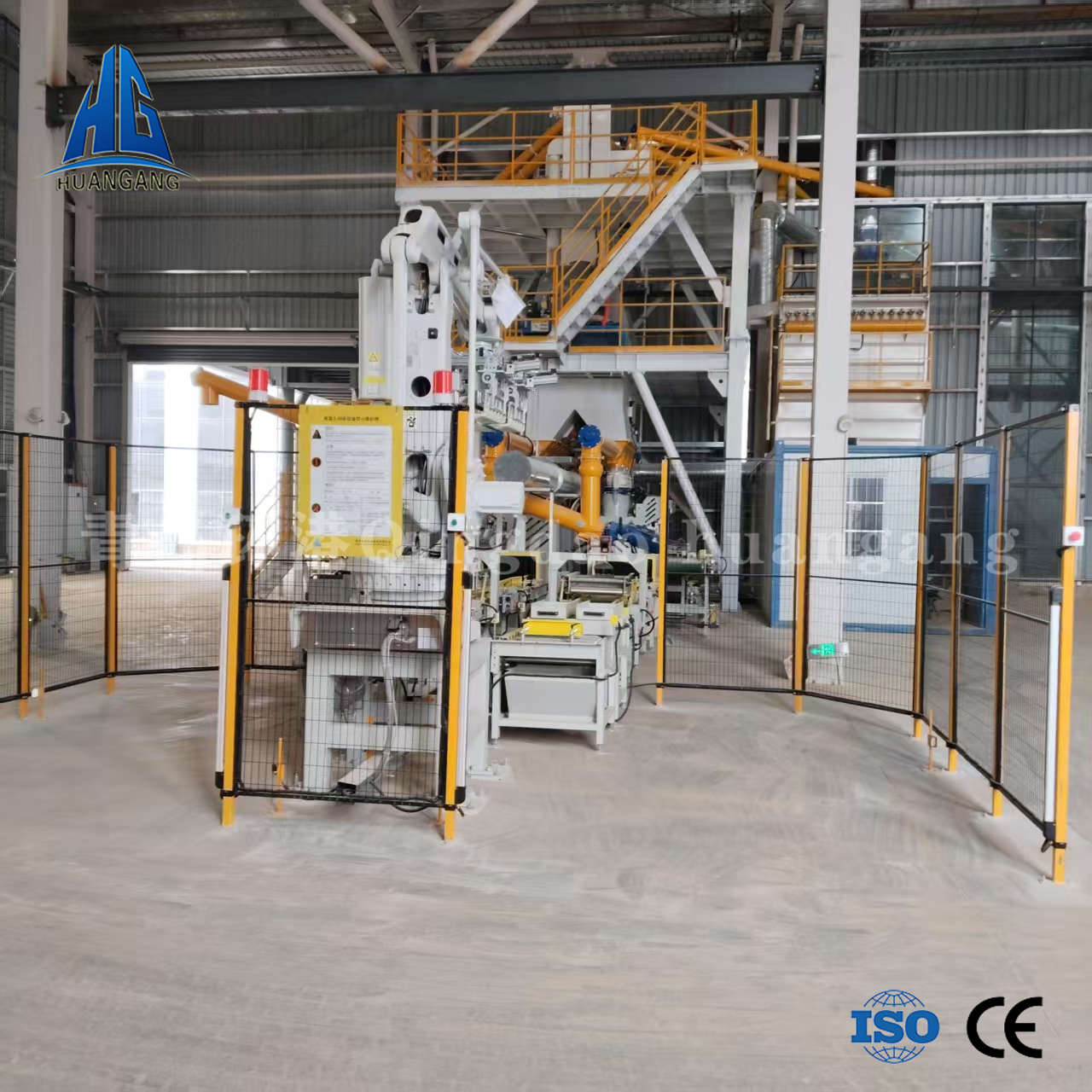

Intelligent dry mix mortar production line. It can be combined with sand making system or wet sand drying system for the production of various dry mortar and special mortar products. According to the selected model, different tons of mortar can be produced per hour. The main building of the production line adopts tower-type structure and stepped type. The powder bin of the tower type production line is installed on the top of the main building, and the admixture system adopts an independent platform automatic metering pumping system or an upper admixture automatic metering system. The aggregate passes through the metering layer, the mixing layer, the finished product warehouse, the control room, the bulk machine and the packaging machine from top to bottom.

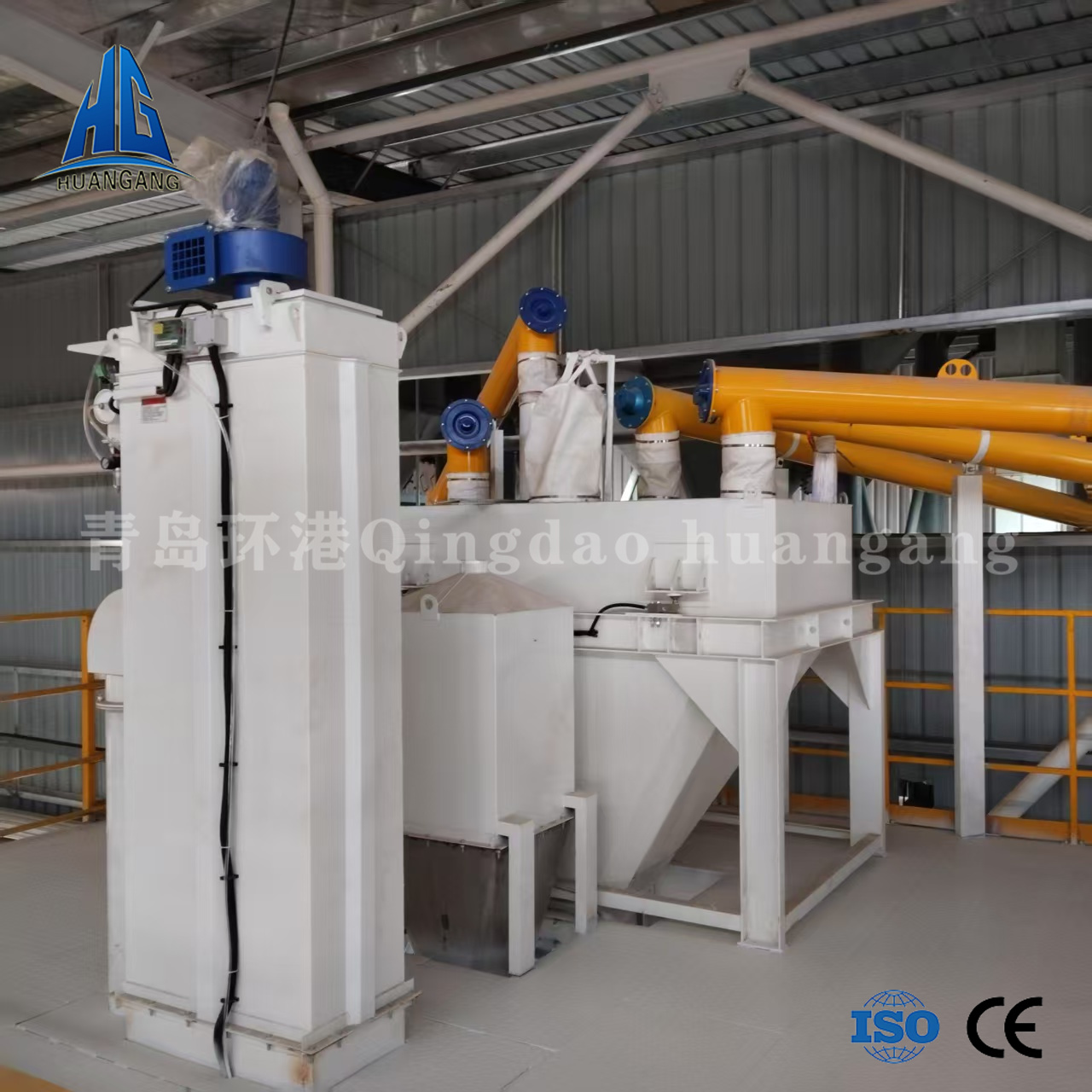

Reliable dust removal system
Dust removal system is an essential process configuration in the mortar production line. According to the different process requirements and characteristics of the dry powder mortar production configuration process, Huanang Heavy Industry has all kinds of dust collectors in the dust prone points to ensure that all powder can be carried out in a closed environment, reduce environmental pollution, and dust emission meets the national standards. Improved working conditions and improved the recycling rate of raw materials.

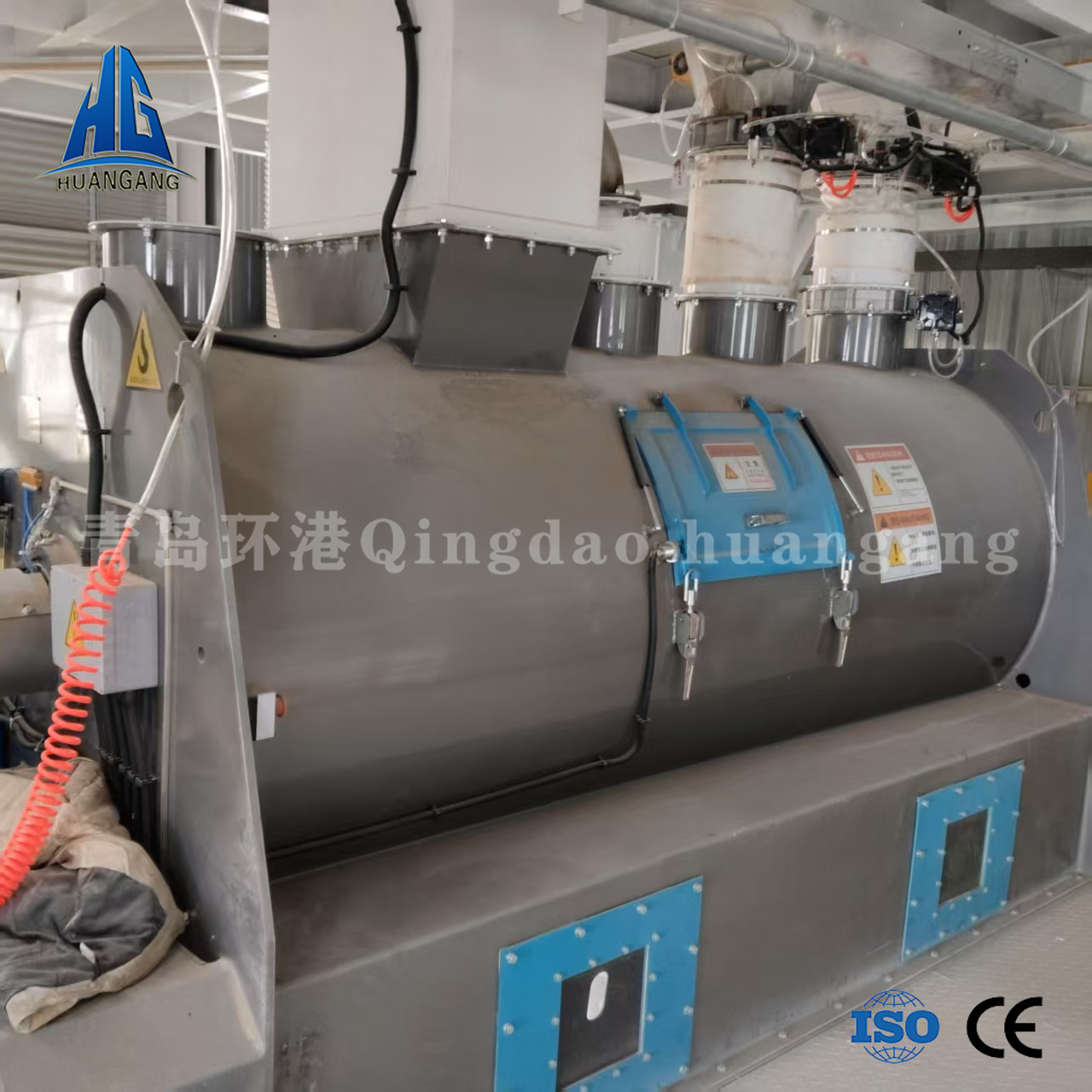

High performance hybrid system
Mixing system is a key part of dry mixed mortar production, but also the "heart" of the factory, Huanang Heavy dry mortar production pure configuration of international standard mixing mixer, mixing uniformity is suitable, mixing time is controllable, excellent repeatability/low maintenance rate can be configured with high-speed flying knife, according to the working condition to open the blade, to achieve mixing and dispersing fibers and pigments.
Huangang Heavy dry powder mortar production line production principle and advantages:
The main control system issues production instructions according to the selected process formula, the system automatically extracts raw materials according to the ratio from the storage bin, and the raw materials enter the mixing bin and the single-axis mixer successively after counterweight, to achieve rapid mixing operation (3-5 minutes). After reaching the mixing accuracy requirements, the finished mortar is transported to the finished product warehouse and enters the automatic filling process. The newly designed automatic packaging machine carries out regular and quantitative filling operations according to the requirements, greatly improving the output efficiency. The packaged finished products are sent to the finished product area for stacking and waiting for delivery.
24-hour online technical support, arriving at the site within 72 hours to solve the fault
We offer lifetime maintenance services and regular follow-up visits to ensure the long-term stable operation of the equipment
A sufficient inventory of spare parts ensures that maintenance and replacement can be completed within a short period of time
